Seismic assessment in Bath must reconcile the city’s UNESCO World Heritage status with the UK’s low-to-moderate seismicity and complex local geology, particularly the Great Oolite limestone overlying Lias clays. Our work applies Eurocode 8 and the UK National Annex within the Bath & North East Somerset planning framework, combining site-specific ground investigations with advanced numerical modelling. A core component is seismic microzonation, which maps local site amplification influenced by steep valley slopes and variable bedrock depth, directly feeding into base isolation seismic design for sensitive structures where conventional strengthening would compromise heritage fabric.

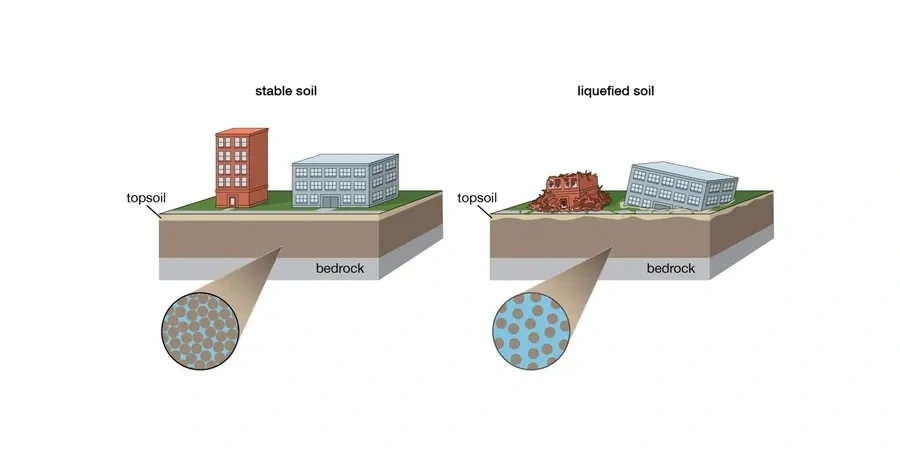

Projects requiring this integrated approach typically include the retrofit of listed buildings, new developments on under-consolidated alluvium in the Avon Valley, and critical infrastructure upgrades. For sites with saturated granular soils, we complement microzonation with soil liquefaction analysis to quantify cyclic stress ratios and settlement potential, ensuring foundation designs remain robust under the 475-year return period seismic action specified in BS EN 1998-1.
Anchor design in Bath is a negotiation between the stiff limestone that provides excellent bond and the creeping Lias Clay that demands conservative free-length detailing.
Service characteristics in Bath
Critical ground factors in Bath
Bath's combination of steep valley sides, centuries-old retaining walls, and variable groundwater chemistry creates anchor design risks that are easy to underestimate. Thermal spring water carries dissolved sulphates and carbonates that accelerate steel corrosion—selecting the wrong protection class here means tendon failure within a decade. Overconsolidated Lias Clay exhibits time-dependent creep; passive anchors designed without allowance for relaxation can lose 20–30% of their load capacity within the first five years. The proximity of listed buildings on shallow strip footings demands that anchor installation methods be low-vibration and that grout pressures be limited to avoid heave beneath historic masonry. On sites within the Bath World Heritage Site boundary, visual impact restrictions may dictate flush anchor heads and recessed bearing plates. Each of these factors—corrosion, creep, vibration limits, aesthetic constraints—must be addressed explicitly in the design documentation submitted for building control approval under the Bath & North East Somerset Council.
Our services
Anchor design services in Bath span temporary excavation support for basement construction to permanent retention of highway cuttings. The three core service packages below cover the typical project spectrum encountered across the city's varied geology.
Active anchor design for deep excavations
Prestressed strand or bar anchors for basement excavations and retaining walls where lateral displacement must be minimised to protect adjacent structures. Includes staged stressing sequences and locked-off load verification per BS EN 1537.
Passive anchor and soil nail design
Self-drilling and hollow bar passive anchors for slope stabilisation in Lias Clay cuttings and embankment reinforcement. Design accounts for creep relaxation in overconsolidated soils and long-term bond degradation in weathered zones.
Anchor corrosion protection and durability assessment
Protection class selection (I or II) based on site-specific groundwater chemistry analysis. Particularly relevant near the Bath thermal springs, where sulphate and chloride levels exceed typical UK groundwater values and drive the need for double corrosion protection systems.
Understanding seismic risk in Bath requires an integrated approach that considers both the local geological setting and the specific performance requirements of structures. Our seismic investigation services in Bath begin with a thorough desk study of the underlying geology, which is dominated by the Jurassic limestones of the Great Oolite Group, often overlain by clay-rich Lias Group formations and variable superficial deposits. This geological context is critical, as the contrast between competent limestone and softer clays can amplify ground motion. All assessments are conducted in accordance with UK norms, including BS EN 1998-1:2004 (Eurocode 8), which provides the framework for seismic design, even in regions of low seismicity. A robust preliminary phase often integrates a detailed ground investigation to characterise the site’s specific soil and rock profile.

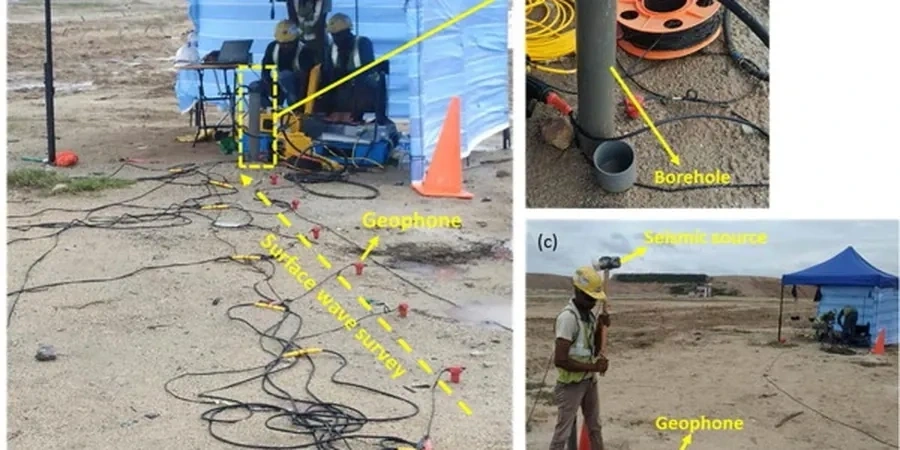

The core of our seismic methodology relies on precise, in-situ measurement of the ground’s dynamic properties, which cannot be reliably derived from standard penetration tests alone. We deploy advanced Cone Penetration Testing (CPT) with seismic modules (SCPT) to measure the shear wave velocity (Vs) profile directly. This data is essential for calculating the ground’s small-strain stiffness and performing site response analysis. For compliance with UK standards, all data acquisition follows the guidelines of BS EN ISO 22476-1. Where the ground is too dense for CPT, complementary In-Situ methods, such as the seismic dilatometer, are employed to ensure a continuous Vs profile to depth, which is the fundamental input for any site-specific seismic hazard assessment.
In Bath’s unique urban landscape, a World Heritage city, seismic assessments are often a critical component of sensitive redevelopment and infrastructure projects. We frequently support structural engineers designing deep foundations for new buildings on hillside sites with complex topography, where ridge-top amplification effects must be quantified. The assessment is also vital for the conservation and retrofit of historic masonry structures, such as the Georgian crescents, where a non-invasive seismic hazard evaluation informs strengthening strategies without causing disturbance. Our laboratory plays a crucial role here, performing cyclic triaxial and resonant column tests on undisturbed samples to determine the stiffness degradation and damping characteristics of local materials under seismic loading.
The process culminates in a comprehensive interpretative report that moves beyond generic hazard maps to provide a site-specific seismic design response spectrum. This deliverable includes the determination of the ground type in accordance with Eurocode 8, liquefaction potential assessment, and, where necessary, time-history analysis parameters. The value lies in de-risking projects by providing a defensible, data-driven basis for design, avoiding both overly conservative assumptions that inflate construction costs and underestimations of the hazard. This rigorous approach ensures that all structures, from new builds to heritage assets, are demonstrably resilient, satisfying both regulatory requirements and the engineering demands of Bath’s sensitive geological and historical environment.
