Geotechnical laboratory testing in Bath provides essential soil classification and parameter determination for the region’s variable geology, ranging from the Great Oolite limestone of the Cotswold fringe to the Lias Clay that underlies much of the city. Our facility delivers index testing in accordance with BS 1377, including precise Atterberg limits to assess plasticity characteristics critical for shrink-swell evaluation in clay-rich formations. Comprehensive grain size analysis combining sieve and hydrometer methods ensures accurate particle size distribution curves for both coarse and fine-grained soils, supporting reliable stratigraphic correlation across Bath’s complex hillside terrain.
These laboratory determinations directly inform foundation design, slope stability assessments, and earthworks specifications for residential developments on Bath’s steep gradients, as well as infrastructure projects within the city’s UNESCO World Heritage context. Contractors and consultants rely on our Atterberg limits data for Category 2 screening to BRE Digest 240, while grain size analysis underpins drainage design and compaction control. Every test programme is tailored to project-specific ground conditions, delivering defensible results within programme constraints.
Anchor design in Bath is a negotiation between the stiff limestone that provides excellent bond and the creeping Lias Clay that demands conservative free-length detailing.
Service characteristics in Bath
Critical ground factors in Bath
Bath's combination of steep valley sides, centuries-old retaining walls, and variable groundwater chemistry creates anchor design risks that are easy to underestimate. Thermal spring water carries dissolved sulphates and carbonates that accelerate steel corrosion—selecting the wrong protection class here means tendon failure within a decade. Overconsolidated Lias Clay exhibits time-dependent creep; passive anchors designed without allowance for relaxation can lose 20–30% of their load capacity within the first five years. The proximity of listed buildings on shallow strip footings demands that anchor installation methods be low-vibration and that grout pressures be limited to avoid heave beneath historic masonry. On sites within the Bath World Heritage Site boundary, visual impact restrictions may dictate flush anchor heads and recessed bearing plates. Each of these factors—corrosion, creep, vibration limits, aesthetic constraints—must be addressed explicitly in the design documentation submitted for building control approval under the Bath & North East Somerset Council.
Our services
Anchor design services in Bath span temporary excavation support for basement construction to permanent retention of highway cuttings. The three core service packages below cover the typical project spectrum encountered across the city's varied geology.
Active anchor design for deep excavations
Prestressed strand or bar anchors for basement excavations and retaining walls where lateral displacement must be minimised to protect adjacent structures. Includes staged stressing sequences and locked-off load verification per BS EN 1537.
Passive anchor and soil nail design
Self-drilling and hollow bar passive anchors for slope stabilisation in Lias Clay cuttings and embankment reinforcement. Design accounts for creep relaxation in overconsolidated soils and long-term bond degradation in weathered zones.
Anchor corrosion protection and durability assessment
Protection class selection (I or II) based on site-specific groundwater chemistry analysis. Particularly relevant near the Bath thermal springs, where sulphate and chloride levels exceed typical UK groundwater values and drive the need for double corrosion protection systems.
Laboratory testing forms the critical backbone of any thorough ground investigation in Bath, where the local geology—ranging from the Great Oolite limestone of the Cotswold escarpment to the softer Lias clays in the valley floors—demands precise material characterisation. Our UKAS-accredited facility supports both routine and advanced classification, strength, and compressibility tests in full compliance with the current ground investigation specification, BS 5930:2015+A1:2020. For projects on the expansive clay slopes of the Avon valley, accurate Atterberg limits determination is not merely a classification exercise but an essential step in assessing volume change potential, directly informing foundation depth and drainage design to mitigate seasonal movement.

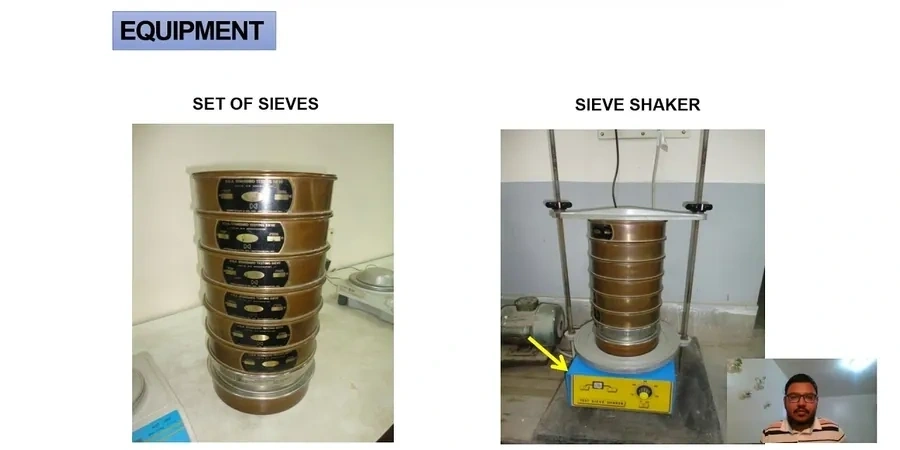

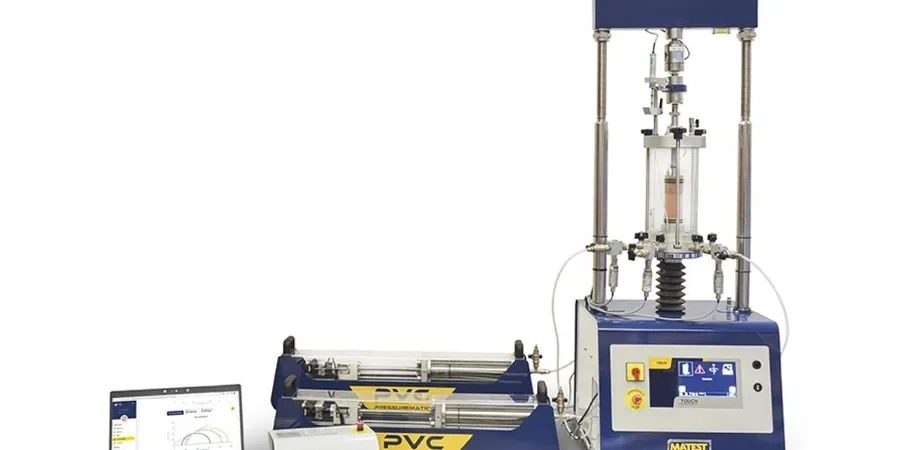

All procedures are executed strictly to the relevant British Standards, ensuring defensible data for design. Classification testing follows BS 1377-2:1990, encompassing natural moisture content, bulk and dry density, and particle size distribution. The latter combines wet sieving for coarse fractions with the hydrometer sedimentation method detailed in BS 1377-2:9.5, providing a full grain size analysis curve that is indispensable for assessing permeability and frost susceptibility in granular soils. Strength testing of cohesive samples typically employs the unconsolidated undrained triaxial compression test per BS 1377-7:1990, while one-dimensional consolidation tests to BS 1377-5:1990 quantify settlement parameters (mv, cv) for clay strata. These methodologies directly complement field data, such as the correlation between undrained shear strength and cone resistance from CPT profiles, creating a robust geotechnical model.
Bath’s UNESCO World Heritage context and its hillside developments create a specific set of challenges where laboratory testing is non-negotiable. For a typical Georgian terrace refurbishment in the Circus, we routinely perform sulphate content and pH tests on the underlying Lias Clay to specify BRE Special Digest 1 concrete for new underpinning works. On the southern slopes, where new residential foundations encounter head deposits over limestone, a combination of point load tests on recovered core and remoulded shear strength tests on the matrix provides the parameters needed to design against shallow slope instability. Infrastructure projects, such as the assessment of historic retaining walls along the Kennet and Avon Canal, rely on measured effective stress parameters from triaxial tests to accurately model the backfill material, a process which is far more reliable than using conservative assumed values and directly validates the interpretations made during In-Situ.
Our laboratory process is integrated directly with the site investigation workflow, beginning with the receipt of high-quality samples—whether U100 tubes, core boxes, or bulk bags—which are logged and immediately stored in controlled humidity conditions. The standard turnaround delivers a comprehensive factual report containing all worksheets, test plots, and summary tables, with interpretive reporting available that synthesises laboratory results with field observations to develop characteristic ground properties. The true value lies in this integration: a field density test result from a compacted limestone fill gains meaning only when paired with the laboratory-derived maximum dry density from a vibrating hammer test, allowing a reliable relative compaction assessment. This closed-loop approach, from sampling to analysis, provides Bath’s engineers and architects with the site-specific, defensible data required for efficient and safe foundations design, eliminating reliance on generic assumptions and reducing residual project risk.
