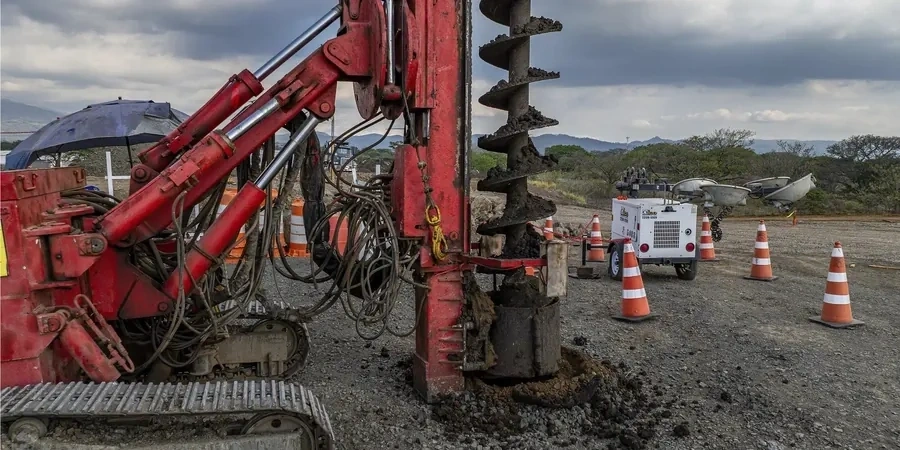

Stone column design in Bath demands a rigorous understanding of the city's complex valley geology. The River Avon corridor has deposited significant thicknesses of soft alluvium and lenses of organic clay, while the surrounding slopes of Greater Oolite limestone create variable bedrock depths across short distances. BS EN 1997-1:2004 requires a limit state design approach for Improvement, and in Bath this means accounting for the transition zones between competent limestone and compressible alluvium within a single foundation footprint. Our team integrates in-situ test data from CPT testing with detailed laboratory classification to build a ground model that captures these abrupt changes. The design process defines column diameter, spacing, and depth to meet settlement tolerances for structures ranging from Georgian terrace renovations to modern mixed-use developments in the city centre World Heritage site.
A well-designed stone column grid can reduce total settlement by 60-70% compared to untreated alluvium, transforming a marginal site into buildable land without deep piling.
Service characteristics in Bath
Critical ground factors in Bath
A recurring mistake on Bath construction sites is assuming that stone columns can be installed to a uniform depth across the entire footprint without mapping the bedrock surface. Where the limestone subcrops unexpectedly shallow -- often within 3 m of ground level along the valley margins -- the vibrator encounters refusal and the column terminates prematurely, leaving untreated soft soil beneath adjacent deeper columns. This creates a stiffness irregularity that concentrates differential settlement at the column-to-untreated transition. The correct approach, which we enforce through our design, requires at least one test pit or dynamic probe per 200 m² to delineate the rockhead contour before finalising the column layout. In areas of historic landfill, unburied timber or masonry obstructions can deflect the vibrator and produce crooked columns with reduced load capacity; pre-drilling through the fill horizon eliminates this risk and ensures verticality tolerances within 1:50 as specified in BS EN 14731 for deep vibratory compaction.
Our services
Our stone column design services for Bath projects cover the full workflow from feasibility assessment through to post-construction verification. We tailor each solution to the specific ground conditions encountered.
Feasibility Assessment and Preliminary Design
Desk study of BGS geological mapping for the Bath area, review of existing ground investigation data, and analytical screening using Priebe's method to estimate achievable improvement ratios. We deliver a preliminary column grid layout with predicted settlement performance for concept-stage budgeting.
Detailed Design and Performance Verification
Full axisymmetric finite element or unit-cell design to BS EN 1997-1, including column spacing, depth, aggregate specification, and construction sequence. Post-installation verification comprises plate load tests on individual columns and multi-column groups, zone load tests, and continuous CPT profiling between columns to confirm composite shear strength.
Quick answers
What is the typical cost range for stone column design and verification in Bath?
For a typical Bath residential or commercial project, the combined design package including feasibility analysis, detailed column layout, construction specification, and on-site verification testing generally falls between £1.250 and £4.190, depending on site area, ground complexity, and the number of plate load tests required.
How deep can stone columns be installed in Bath's ground conditions?
In the Avon valley alluvium, columns typically reach depths of 4 m to 12 m. The limiting factor is usually the underlying Lias Clay or the top of the limestone bedrock. Where the alluvial sequence is thicker -- such as near the river channel itself -- depths up to 15 m are achievable with the appropriate vibrator power and extension tubes.
Can stone columns be used adjacent to Bath's historic structures?
Yes, provided vibration levels are carefully controlled. We specify vibration monitoring with limits typically set at 5 mm/s PPV at the nearest sensitive foundation. In some cases, an excavation monitoring plan is implemented concurrently. Where structures are exceptionally fragile, we may recommend a reduced energy compaction method or pre-drilling to minimise lateral disturbance.
What is the difference between stone columns and vibrocompaction for Bath soils?
Stone columns are a vibro-replacement technique suited to cohesive soils -- exactly the soft silty clays and alluvium common in Bath. Vibrocompaction is a densification method that works only in granular, free-draining soils. In Bath, true vibrocompaction is rarely applicable; stone columns are the correct Improvement choice for the fine-grained valley deposits.
How do you verify that stone columns are performing as designed?
Verification combines quantitative load testing with geotechnical profiling. We specify plate load tests on individual columns and groups of three to measure load-settlement response up to 150% of the design working load. Between columns, CPT testing provides a continuous profile of composite shear strength improvement. The acceptance criterion is that the measured settlement ratio -- treated versus untreated -- meets or exceeds the design prediction.
